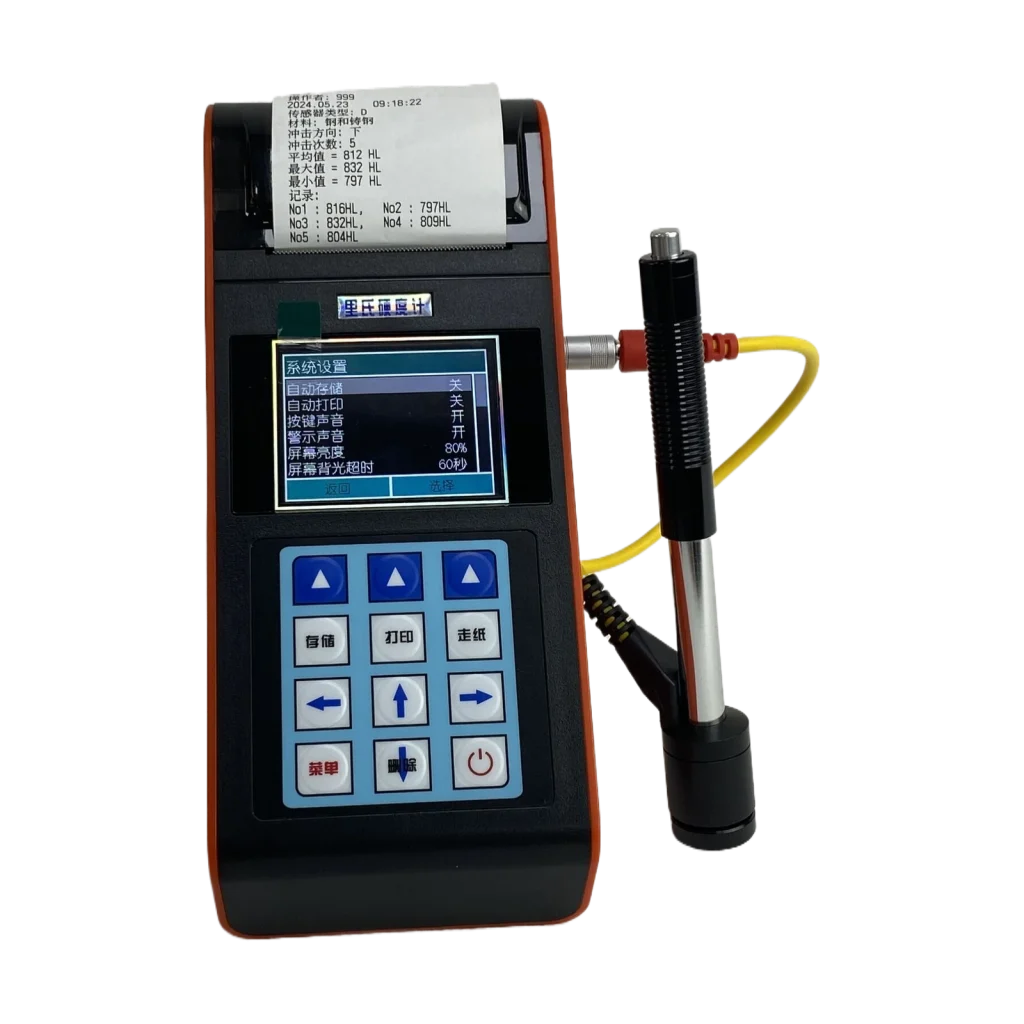

The SD-PHT290 is a Leeb hardness tester with a built-in printer, so results can be printed on the spot. It displays two hardness scales simultaneously on a 320×240 true-colour TFT, converts across HV, HB, HRC, HRB, HRA and HS, and switches to a strength (σb) mode.
A user-defined material function and seven impact devices extend its range; up to 500 groups are stored in non-volatile memory.
Features
Built-in printer for on-the-spot results
Two-scale simultaneous display; converts to HV, HB, HRC, HRB, HRA, HS and strength (σb)
320×240 true-colour TFT with backlight; window menu style
User-defined material function widens the Leeb application range
7 impact devices, hot-swappable without recalibration
500 groups non-volatile storage; high/low limit alarm
Software calibration; rechargeable 7.4 V lithium battery
Technical Data
Measuring Materials
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel
SD-PHT220plus SD-PHT220plus Portable Leeb Hardness Tester
HLD 170–960 · HRC/HB/HV/HS/HRA/HRB · 600 groups · colour TFT
SD-PHT230 SD-PHT230 Portable Leeb Hardness Tester
HLD 170–960 · 7 scales · 600 groups · 320×240 TFT · 0.3 kg
SD-PHT280 SD-PHT280 Portable Leeb Hardness Tester
HLD 170–960 · 7 scales · 600 groups · matrix LCD
