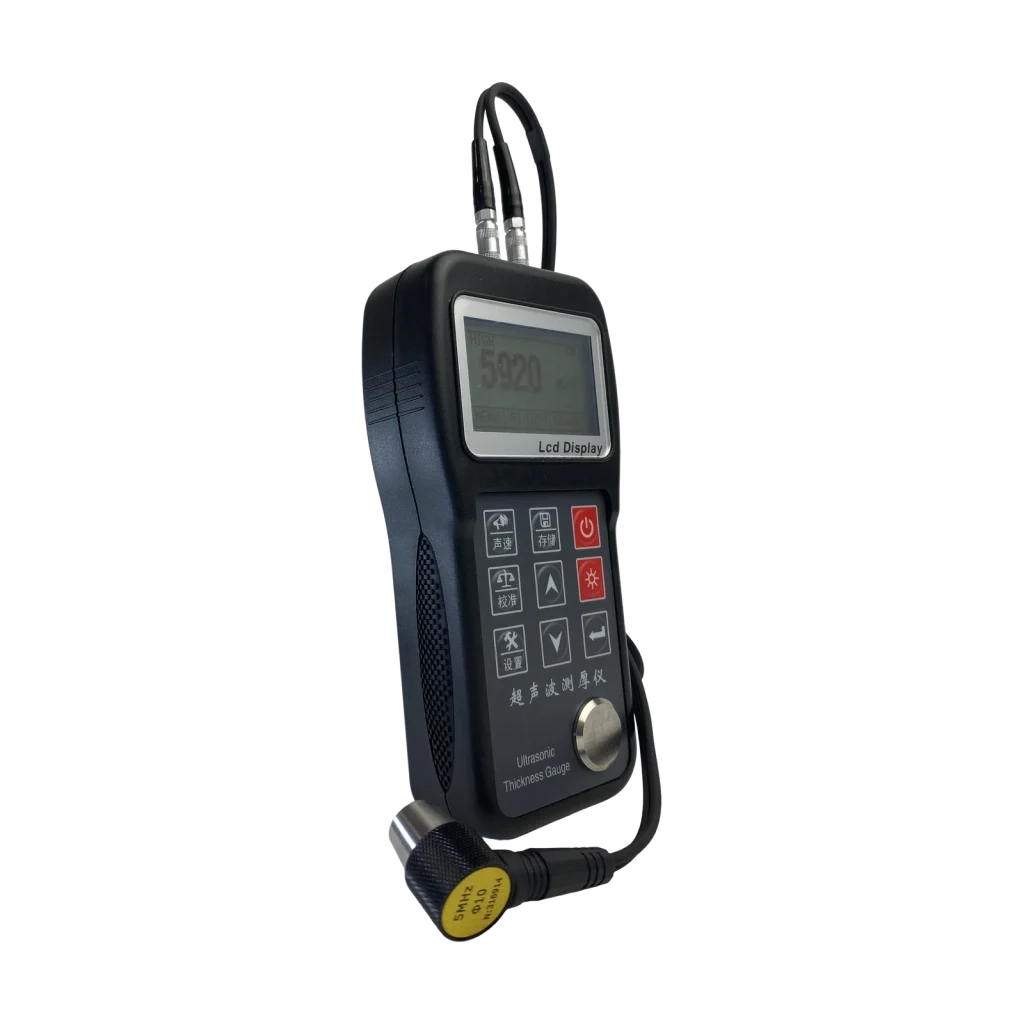

The SD-UTG310 measures the thickness of metals, plastics, ceramics, glass and other materials by ultrasonic pulse-echo, without cutting or damaging the part. The standard probe covers 1.2–230 mm, and the total range is 0.75–300 mm depending on the probe.
Probe zero and two-point calibration, velocity measurement and a coupling-status alert keep readings accurate in the field, while a 250-hour battery life and LED backlight suit long inspection runs.
Features
Metal, plastic, ceramic, glass and composite measurement without damage
Range 0.75–300 mm; standard probe 1.2–230 mm
0.01 mm / 0.1 mm display resolution; accuracy ±(0.5% thickness + 0.04 mm)
Probe zero and two-point calibration for automatic error correction
Sound-velocity measurement to improve accuracy
Coupling-status alert; LED backlight for dark environments
5 files × 100 values memory; 250 h working time on 2× AA batteries
Technical Data
Measuring Range
0.75~300mm (0.03~11.8inch) depends on probe Standard probe: 1.2~230mm
Sound Velocity Range
1000~9999m/s (0.039~0.394in/μs)
Display Resolution
0.01mm(lower than 100.0mm) 0.1mm(more than 99.99mm)
Accuracy
±(0.5% thickness+0.04)mm, depends on materials and conditions
Data Memory
5 files x 100 values, 5 value of sound velocity
PC Software
No
Power
AA battery 2pcs (working time 250 hours if backlight off)
