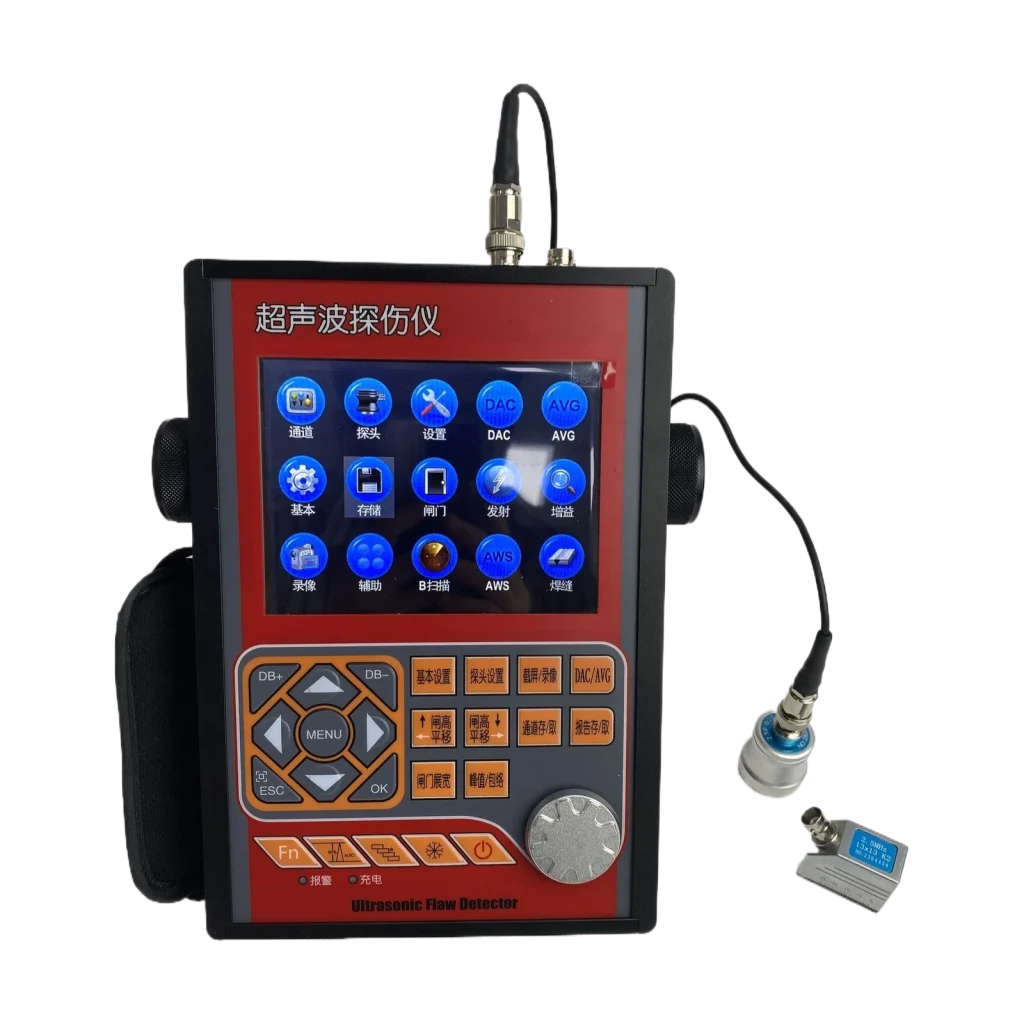

SD-UFD680 Ultrasonic Flaw Detector
Model: SD-UFD680
0–15,000 mm in steel · 640×480 colour TFT · 320 MHz sampling · PDF reports
- Range 0–15,000 mm in steel
- Display 640×480 colour TFT, 60 Hz
- Sampling 320 MHz, 16-bit ADC
- Gain 0–110 dB
- Report BMP / PDF to USB
MOQ 1 pc · Lead time 5 working days · Reply within 8 hours · OEM / ODM available · 2-year warranty
The SD-UFD680 is a portable industrial digital ultrasonic flaw detector for locating and sizing hidden cracks, voids, disbonds and similar discontinuities in welds, castings and forgings. It combines an ARM+FPGA core with a highly reliable multi-tasking system, a master–slave menu with shortcut keys and a rotary knob, and a 640×480 multi-colour TFT display with a fast 60 Hz refresh.
Waveforms and complete inspection reports can be saved as BMP screenshots or exported as PDF to a USB drive — including customised report content — for archiving, printing and sharing on a phone or PC.
Features
- ARM + FPGA core with a highly reliable multi-tasking operating system
- Master–slave menu with shortcut keys and a digital rotary knob
- 640×480 multi-colour TFT, 60 Hz refresh, four selectable interface styles, adjustable brightness
- All-aluminium shell with strong electromagnetic shielding; tempered-glass panel
- 360° rotating damping bracket and rubber sheath
- Range up to 15,000 mm in steel, in fixed steps or continuously variable
- Pulser 100–500 V, pulse width 0.1–0.5 µs, PRF 20 Hz–2 kHz, damping 50/150/250/500 Ω
- Receiver: 16-bit ADC at 320 MHz sampling, 0.2–20 MHz bandwidth, gain 0–110 dB in 0.1/2/6 dB steps
- Two independent gates with echo-to-echo mode for closely spaced signals
- Real-time screenshot and PDF flaw-detection report to USB drive
