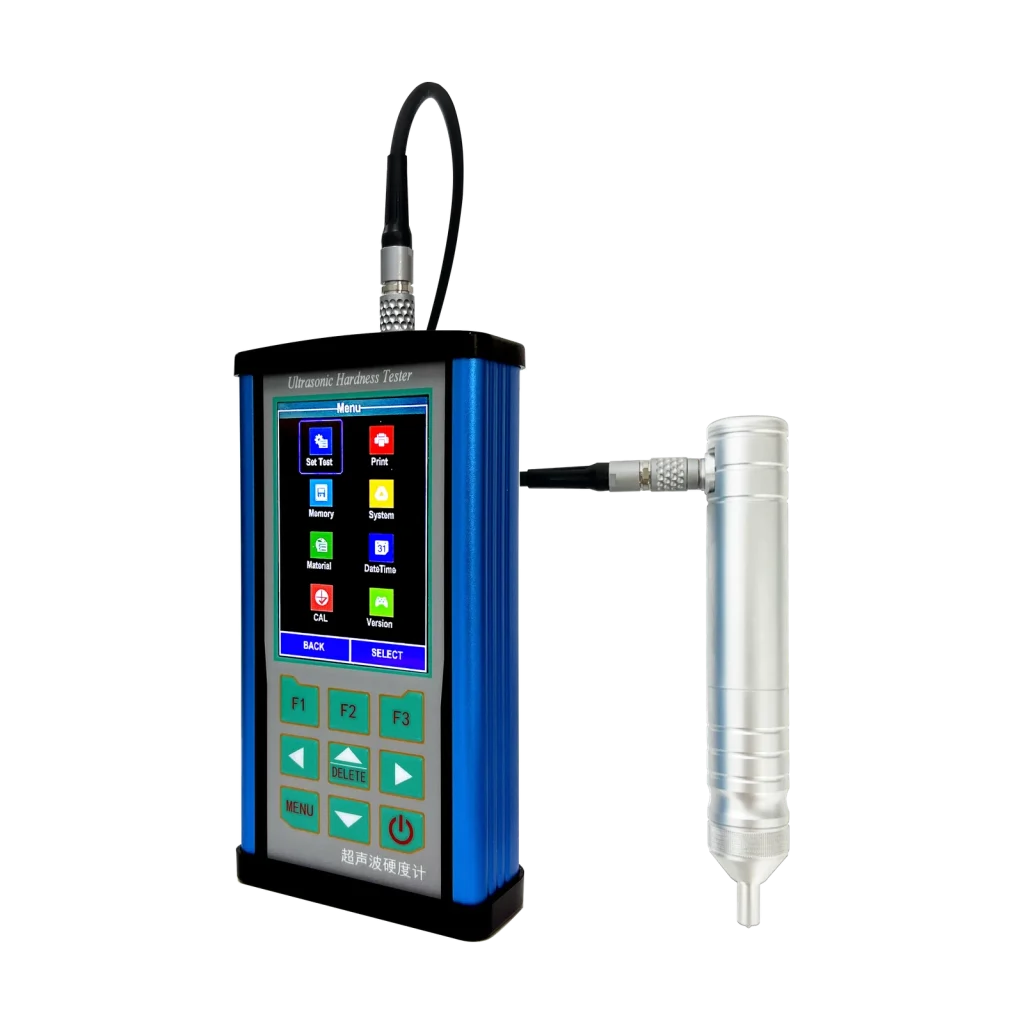

SD-UHT271 Ultrasonic Hardness Tester

The SD-UHT271 uses the ultrasonic contact-impedance (UCI) principle to measure hardness without an optical indentation, covering most ferrous and non-ferrous metals. A 2 kgf probe (5 kgf / 10 kgf optional) reaches flange edges, gear-tooth roots, thin plates and surface layers.

A 3.5-inch IPS colour display, automatic probe recognition with hot-swap, and 600 records with USB output make it suitable for both workshop and laboratory use.

Features

• Ultrasonic contact-impedance (UCI) principle; no optical indentation needed
• Vickers, Brinell, Rockwell (HRB/HRC/HRA) scales
• 2 kgf probe (5 kgf / 10 kgf optional); automatic + manual probe recognition, hot-swap
• 3.5-inch IPS colour LCD, 480×320, adjustable backlight
• 3 additional material settings for special materials; multi-point calibration
• High/low limit alarm; 600 records with date, probe type and material
• USB 2.0 interface; ~10 h working time on 3.7 V lithium battery

Technical Data
